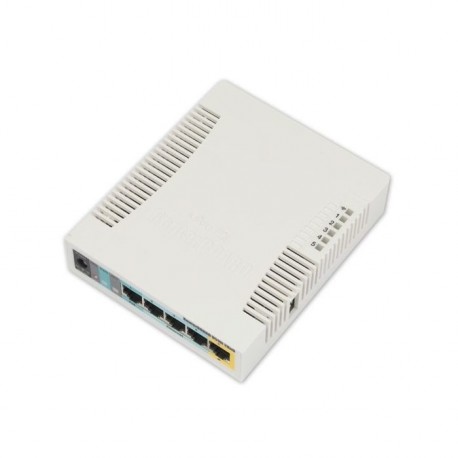

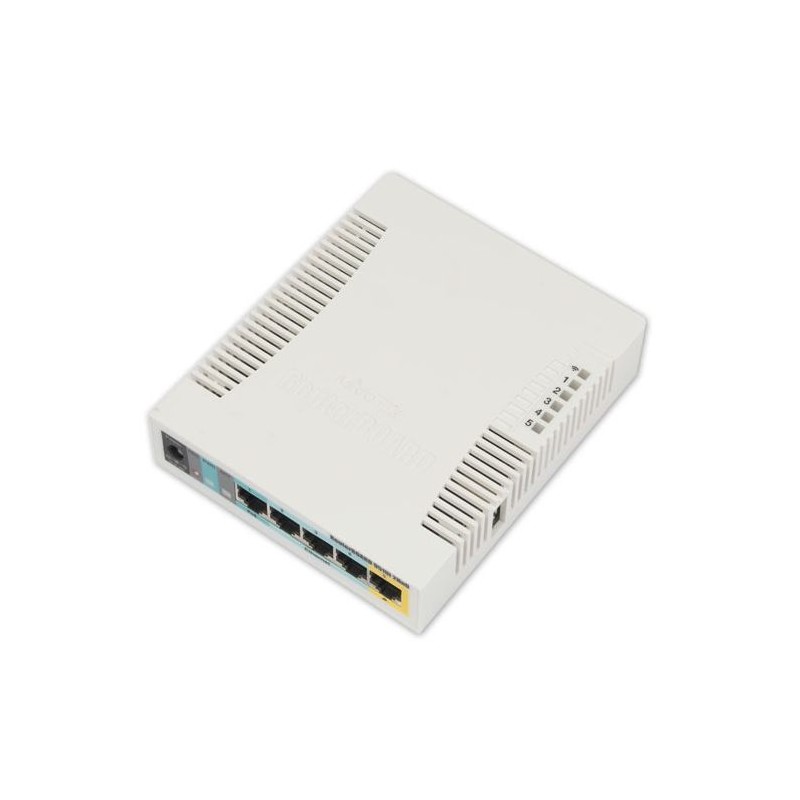

Dostopna točka (access point) Mikrotik RB951UI-2HND

RB951Ui-2HnD je brezžični SOHO AP z novo generacijo procesorja Atheros in večjo procesorsko močjo.

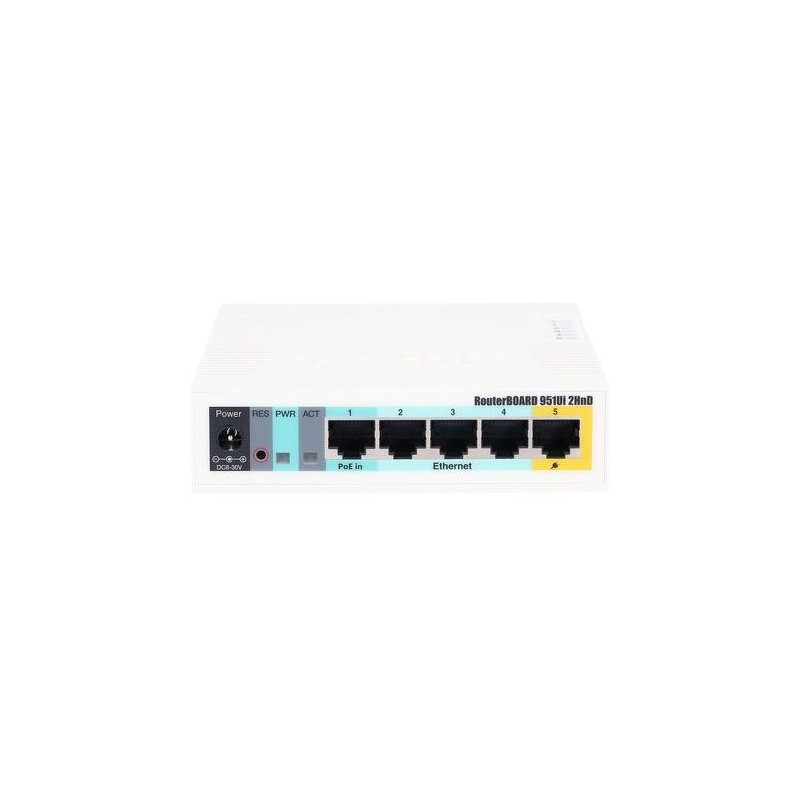

Ima pet vmesnikov Ethernet, en USB 2.0 vhod in 2,4 GHz 802.11 b/g/n brezžični AP z vgrajenimi antenami.
Ima 600MHz CPU, 128 MB RAM-a in PoE izhodno funkcijo za vrata # 5 - lahko napaja druge naprave, sposobne za PoE, z enako napetostjo, kot je priključena na enoto.

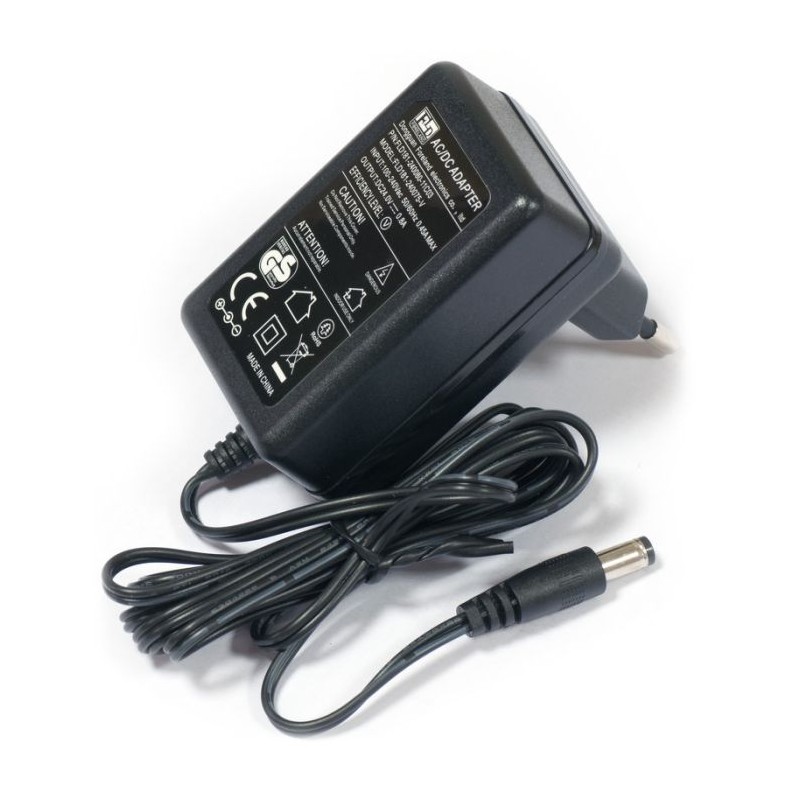

Največja obremenitev izhoda je 500mA.Paket vsebuje RouterBOARD 951Ui-2HnD v plastičnem ohišju in napajalnik.SPECIFIKACIJE:
DetailsProduct code
RB951Ui-2HnDArchitecture
MIPSBECPU
AR9344CPU core count
1CPU nominal frequency
600 MHzDimensions
113x138x29mmRouterOS license
4Operating System
RouterOSSize of RAM
128 MBStorage size
128 MBStorage type
NANDMTBF
Approximately 100'000 hours at 25CTested ambient temperature
-20C +60CSuggested price
$59.95Wireless capabilitiesDetailsWireless 2.4 GHz Max data rate
300 Mbit/sWireless 2.4 GHz number of chains
2Wireless 2.4 GHz standards
802.11b/g/nAntenna gain dBi for 2.4 GHz
2.majWireless 2.4 GHz chip model
AR9344Wireless 2.4 GHz generation
Wi-Fi 4EthernetDetails10/100 Ethernet ports
5PeripheralsDetailsNumber of USB ports
1USB Power Reset
YesUSB slot type
USB type AMax USB current (A)
1PoweringDetailsNumber of DC inputs
2 (PoE-IN, DC jack)DC jack input Voltage
8-30 VMax power consumption
24 WMax power consumption without attachments
7 WFAN count
PassivePoE in
Passive PoEPoE in input Voltage
8-30 VPoE-outDetailsPoE-out ports
Ether5PoE out
Passive PoEMax out per port output (input 18-30 V)
500 mAMax total out (A)
500 mACertification & ApprovalsDetailsCertification
CE, FCC, IC, EAC, ROHSWireless specifications2.4 GHz
Transmit (dBm)
Receive Sensitivity6MBit/s
30
-9654MBit/s
25
-80MCS0
30
-96MCS7
23
-78Uradna stran proizvajalca: https://mikrotik.com/product/RB951Ui-2HnD#fndtn-gallery
