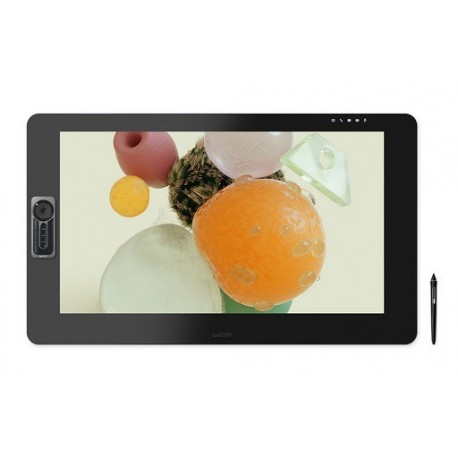

Wacom Cintiq Pro 32 je grafična tablica s 31,5-palčnim (80 cm) 4K zaslonom na dotik in je namenjena profesionalni uporabi. Zaslon se ponaša z izjemno reprodukcijo barv, odličnimi detajli in posebnim steklom, ki skupaj s pisalom Wacom Pro Pen 2 daje občutek risanja po papirju. Pro Pen 2 z 8.192 nivoji površinske občutljivosti, prepoznavanjem nagiba in pisanjem skoraj brez zamika zagotavlja izjemno natančnost. Priložen je tudi ExpressKey Remote upravljalnik, s katerim je delo občutno hitrejše. Wacom Cintiq Pro 24 lahko na PC ali Mac enostavno povežete z USB-C kablom, možna pa je tudi povezava preko DisplayPort ali HDMI.
Seznam rezervnih delov ter dodatkov najdete na tem linku.
Paket vključuje tudi brezplačno programsko opremo.
Lastnosti
Vključuje Wacom Pro Pen 2, ki je na pritisk občutljivo, brezbaterijsko in brezžično pisalo z 8.192 nivoji površinske občutljivosti
Pisalo pri vnosu praktično nima zamika in podpira nagib, na njem pa so tudi 3 nastavljivi gumbi
4K ločljivost (3840 x 2160 px)
32" LCD zaslona in izjemna reprodukcija barv (98% Adobe RGB barvnega prostora) poskrbita, da je na sliki vidna vsaka podrobnost
Površina zaslona je iz posebnega, rahlo hrapavega stekla, ki daje občutek pisanja po papirju
Wacom Cintiq Pro 32 lahko na Mac ali PC povežete le s priloženim USB-C kablom (za video in podatke), možna pa je tudi povezava z DisplayPort ali HDMI kablom, ki za podatkovni prenos potrebujeta še USB-A kabel
ExpressKey Remote omogoča hiter dostop do 17 nastavljivih bližnjic, tipkovnica na zaslonu in okrogli meniji pa ponujajo še hitrejše delo
Cintiq Pro 32 ima vgrajene nogice, ki omogočajo nagib od 5° do 20°
Paket vsebuje
Wacom Cintiq Pro 32 z zaslonom na dotik
Wacom Pro Pen 2 s kompletom 4 barvnih obročkov
ExpressKey™ Remote (z USB-A RF sprejemnikom
in 30cm micro-USB v USB polnilnim kablom)
Stojalo za pisalo z 10 nadomestnimi konicami (6 standardnih, 4 posebne - "felt") in orodje za odstranjevanje konic
Držalo
za pisalo
180W AC adapter in 1,8 m napajalni kabel
1,8 m USB-C v USB-C kabel
3 m DisplayPort
v DisplayPort kabel
3 m HDMI2.0
v HDMI2.0
kabel
3 m standardni USB-A
v USB-A kabel
Adapter DisplayPort v
Mini DisplayPort
Dokumentacija
Čistilna krpica
Vse specifikacije (v angleščini)
Product Type: Creative Pen Display 32
Display Size: 854 x 506 x 53.25 mm (33.62 x 19.92 x 2.1 in)
Display weight: 13 kg (28.66 lbs) without optional stand
Screen Size (Measured Diagonally): 80 cm / 31.5 in
Technology: IPS UHD high brightness panel
Displayable Colors (maximum): 1.07 billion colors (10 bits color)
Aspect Ratio: 16:9
Viewing Angle: Range Up to 64° from vertical (26° from horizontal, up to 90°)
Contrast Ratio: 1000:1, minimalno 750:1
Brightness: 310 cd/m2
Response Rate: 8 ms
Active Area: 697 X 392 mm (27.44 X 15.43 in)
Color Gamut: 98% Adobe RGB
Industry Standard Pre-sets: 6500° K whitepoint default
Graphics Input: USB type C port (supporting DisplayPort Alternate Mode) or DisplayPort or HDMI 2.0 port (required for 3840 x 2160 resolution)
Multi-touch: yes
Pen: Wacom Pro Pen 2
Pressure Levels: 8192, both pen tip and eraser
Tilt Range: 60 degrees
Tilt Recognition: ±60 levels
Type: Pressure-sensitive, cordless, battery-free
Switches: Tip switch, 2 side switches, eraser
Nibs: 10 (6 standard, 4 felt) in pen stand
Pen Box/Holder: Yes - Pen Holder
Pen Stand: Yes
Grip: Latex-free silicone rubber
Technology: Patented electromagnetic resonance method
Resolution: 5080 lpi
Expresskeys™: 17 customizable, application-specific on
included ExpressKey™ Remote
Touch Ring: Yes - on included ExpressKey Remote
Touch Strips: No
Rocker Ring And Home Button: Yes - on included ExpressKey Remote
Radial Menu: Yes
Precision Mode: Yes
Display Toggle: Yes
Dedicated Pan, Scroll, Zoom, Brush Size: Yes
ExpressKey™ Remote Dimensions: 135 x 52 x 10 mm
(5.3 x 2.0 x 0.4 in)
ExpressKey™ Remote Continuous Operation: Up to 160 hours, if a key is pressed every 30 seconds
ExpressKey™ Remote Charge Time: Up to 2 hours
Cables Included: USB to USB cable (3m), DisplayPort to DisplayPort cable (3m), HDMI2.0 to HDMI2.0 cable (3m), USB-C to USB-C cable (1.8m), DisplayPort to Mini DisplayPort adapter, MicroUSB to USB cable (30 cm; for ExpressKey Remote), Power Cables (1.8m)
PC and Mac Connection Requirements: USB-C supporting DisplayPort Alternate Mode (DP Alt), or DisplayPort and standard USB-A,
or HDMI port and standard USB-A port
4 x USB3 ports*, 1 x USB C port, 1 x USB3 port (Upstream port connected to computer), 1 x HDMI2.0 port, 1 x DisplayPort, 1 USB-A Port ( For ExpressKey Remote dongle)
*When connected to host computer over USB-C (including Cintiq Pro Engine), Cintiq Pro USB 3.0 ports run at USB 2.0 speeds to accommodate 4K input video bandwidth over USB-C
Audio: Audio headset jack, built-in microphone
Power Supply Input: 100 to 240 VAC, 50/60HZ
Power Supply Output: 19.5V / 9.23A
Power Consumption: Power ON mode (
Max.): 129 W, Power sleep mode: 0.5 W or lower, Power OFF mode: 0.5 W or lower
Battery: Rechargable Li-ion battery on include ExpressKey Remote
Security: Kensington® Lock Port (lock purchased separately)
System Requirements: PC: Windows® 7 or later (latest service pack/build), Mac: OS X 10.11 or later (latest update); USB-C port with DisplayPort Alternate Mode (UHD), or Mini DisplayPort/DisplayPort (UHD) and USB-A, or HDMI 2.0 (UHD) and USB-A; Internet access for driver download.
Certifications: VCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS
Additional Accessories: Wacom Ergo Stand, Wacom Cintiq Pro Engine, Wacom Color Manager, Wacom Pro Pen 3D, Wacom Keyboard, Replacement Wacom nibs (standard and flex) for Wacom Pro Pen 2, Additional previous generation pens (Classic, Airbrush, Art, Pro Pen), Replacement ExpressKey Remote, Replacement Wacom Pro Pen 2, Flex Aem, VESA Mount
TAB-119332
