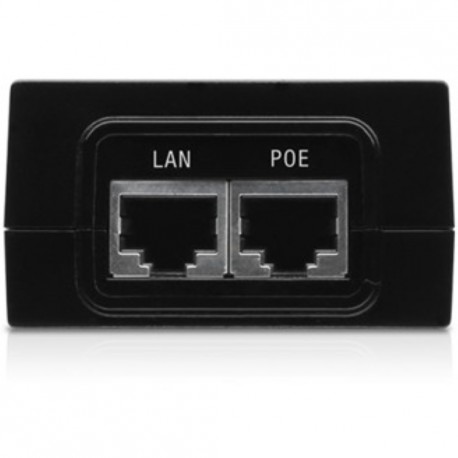

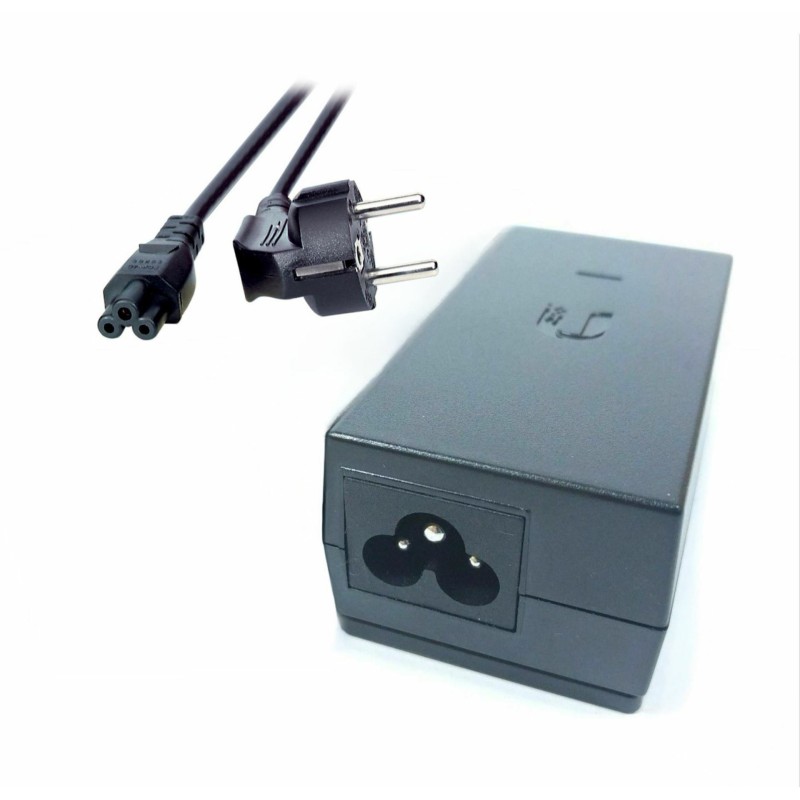

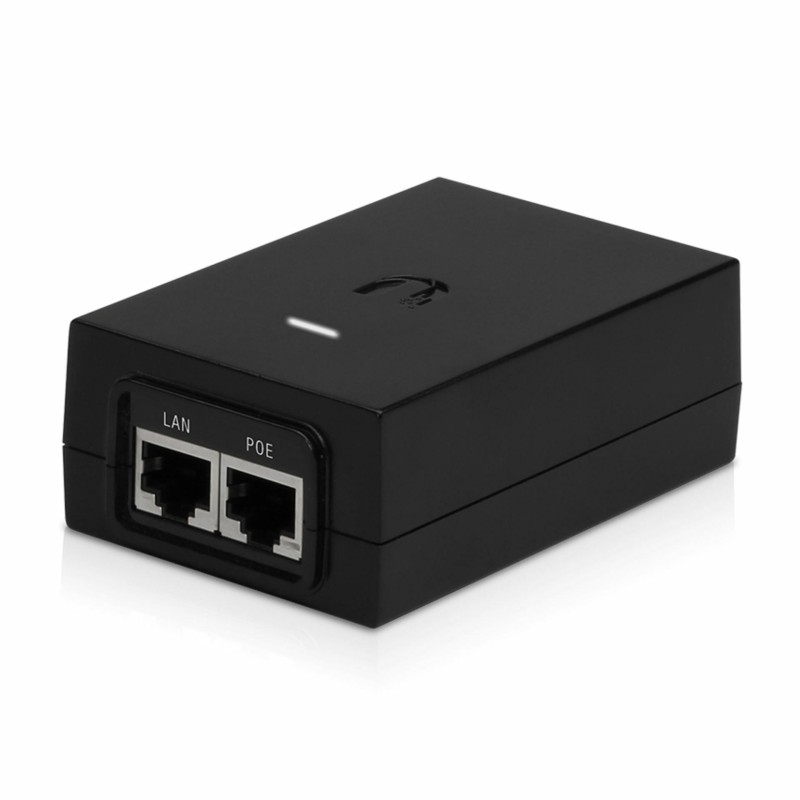

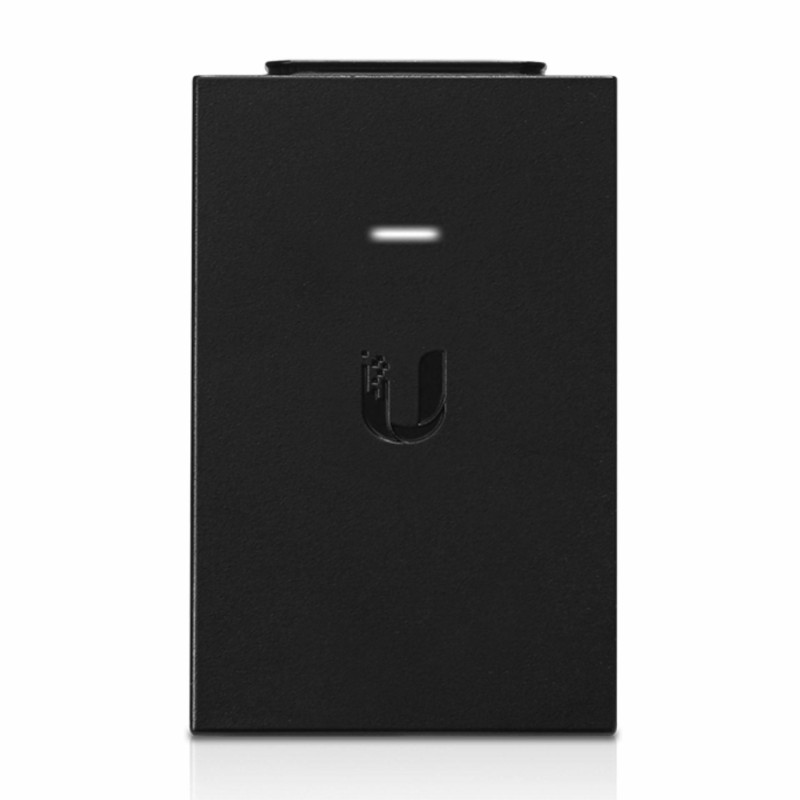

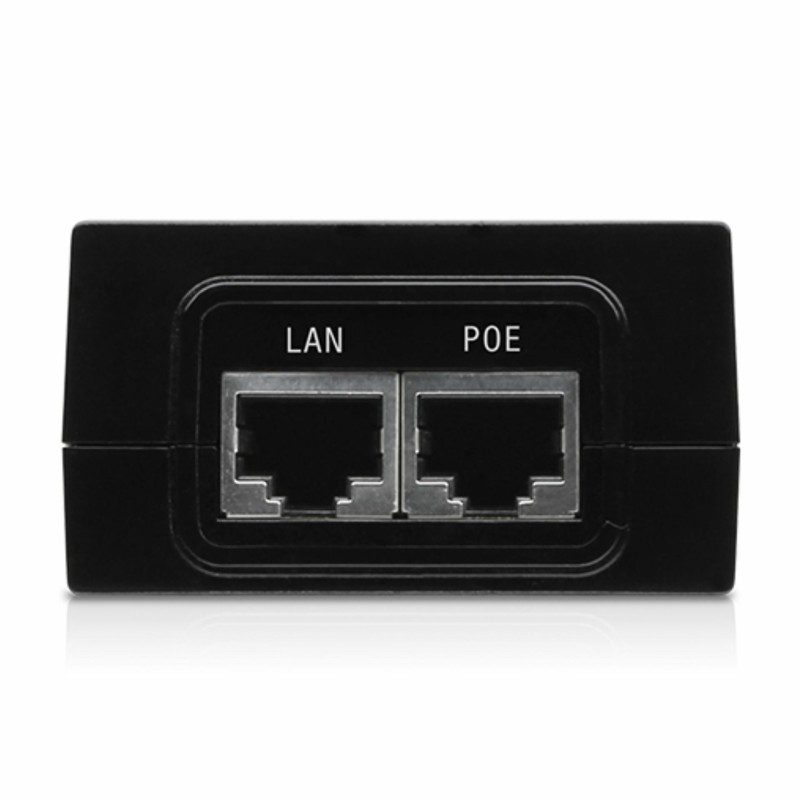

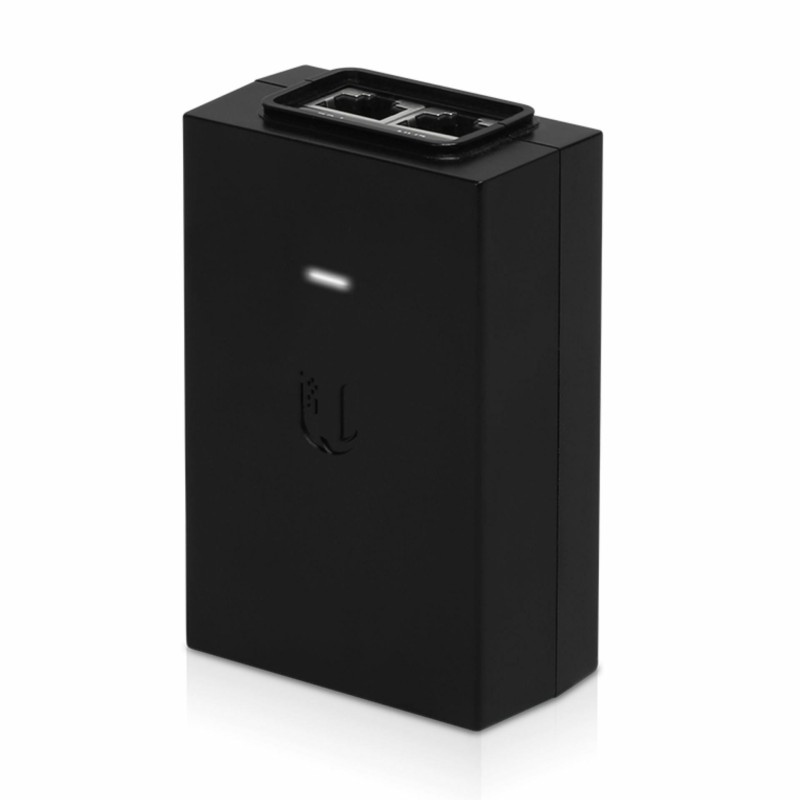

Adapter Ubiquiti gigabitni POE-24-24W-G

Ubiquiti PoE adapterji nudijo različne funkcije za zaščito vaših naprav PoE:
- Prenapetostna zaščita
- Zaščita pred vpenjanjem
- Največja prenapetostna razelektritev
- Najvišji impulzni tok
- AC kabel z ozemljitvijoElektrostatična razelektritev (ESD) je glavni vzrok za okvare zunanjih naprav.
Z ozemljenim adapterjem Ubiquiti PoE, TOUGHCableTM in TOUGHCable konektorji se lahko učinkovito zaščitite pred poškodbami zaradi ESD.
SpecifikacijeModel
POE-24-24W-GDimensions
88 x 57 x 33 mm (3.47 x 2.24 x 1.30")Weight
158.5 g (5.59 oz)Output Voltage
24VDC @ 1.0ALAN Activity Indicator
NoGigabit LAN Port
YesRemote Reset Capability
YesReset Button
YesRated Voltage
100-240VAC @ 50/60HzInput Current
0.6A @ 120VAC, 0.4A @ 240VACInrush Current
60A Peak @ 120VAC, 120A Peak @ 230VACEfficiency
80+%Output Ripple
1% Max.Switching Frequency
65 kHzLine Regulation
≤ 3%Load Regulation
≤ 5%2-Pair Powering
Pins 4, 5 (+) and Pins 7, 8 (-)4-Pair Powering
-Operating Temperature
0 to 40° C (32 to 104° F)Storage Temperature
-30 to 70°C (-22 to 158° F)Operating Humidity
35 to 95% NoncondensingAC Connector
IEC-320 C6Data IN / PoE
RJ45 Shielded SocketSurge Protection
Difference and Common ModeClamping Protection
11V Data, 60V PowerMax. Surge Discharge
1500A (8/20 μs) PowerPeak Pulse Current
36A (10/1000 μs) DataShunt Capacitance
5 pF dataResponse Time
1 nsCertifications
CE, FCC, IC, ULUradna stran proizvajalca: https://eu.store.ui.com/collections/operator-accessories/products/poe-injector-24vdc-24w-gbit
