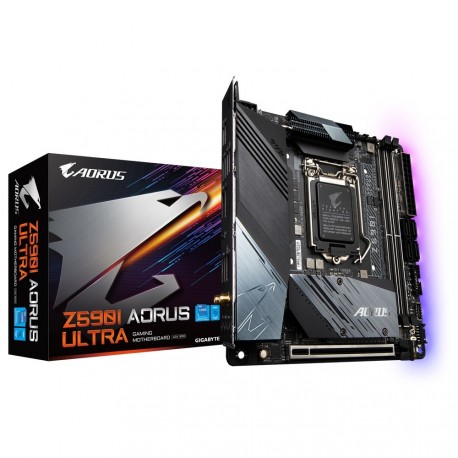

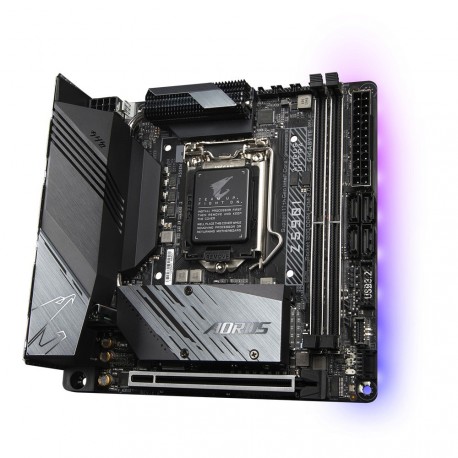

Matična plošča GIGABYTE Z590I AORUS ULTRA, DDR4, LGA1200, mITX

PODNOŽJE: INTEL LGA1200
ZA PROCESORJE:Intel 11th
Generation Core™ i7/i5/i3/Pentium/Celeron
FORMAT: mini ITX Form Factor 17 x 17 cm
VEZNI ČIP: Intel
Z590 Express
POMNILNIK:
2 x
DDR4 (4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133
MHz)
do skupno 64GB kapacitete, dual channel in
Extreme Memory Profile (XMP)
podpora
GRAFIKA: preko CPU
RAID: DA (0,1,5,10)
RAZšIRITVENE REŽE:
1
x PCIe x16 (x16 mode)
MREŽNA KARTICA:
Intel
2.5GbE LAN chip
ZVOČNA KARTICA:
Realtek ALC1220-VB
codec, High Definition Audio,
2/4/5.1/7.1-channel
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper
1 x chassis intrusion header
ZUNANJI PRIKLJUČKI:
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
3 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
DODATNO:iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
cFosSpeedSpletna stran proizvajalca:
https://www.gigabyte.com/Motherboard/Z590I-AORUS-ULTRA-rev-10#kf
