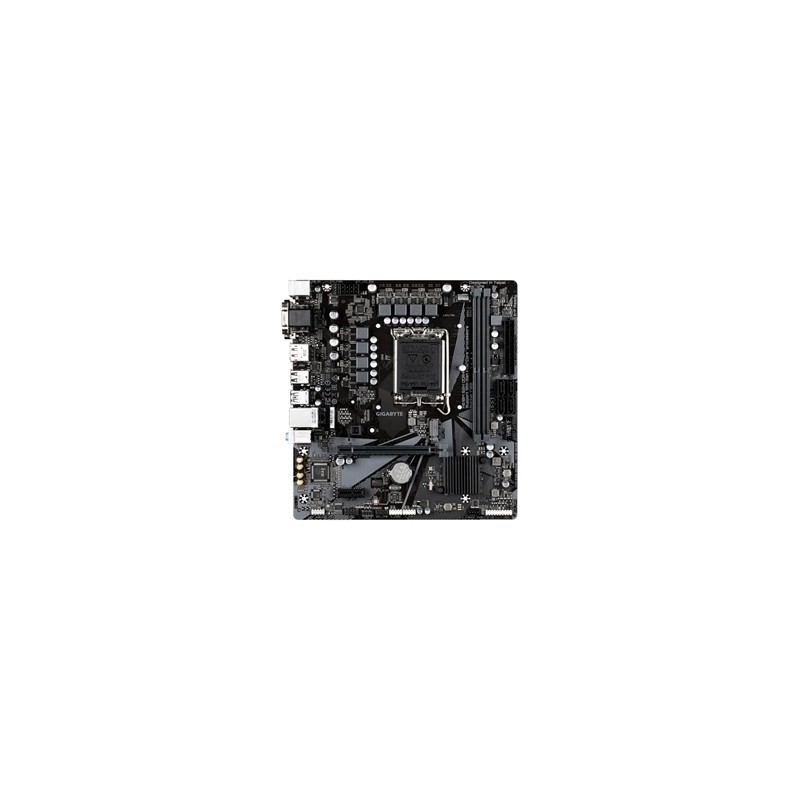

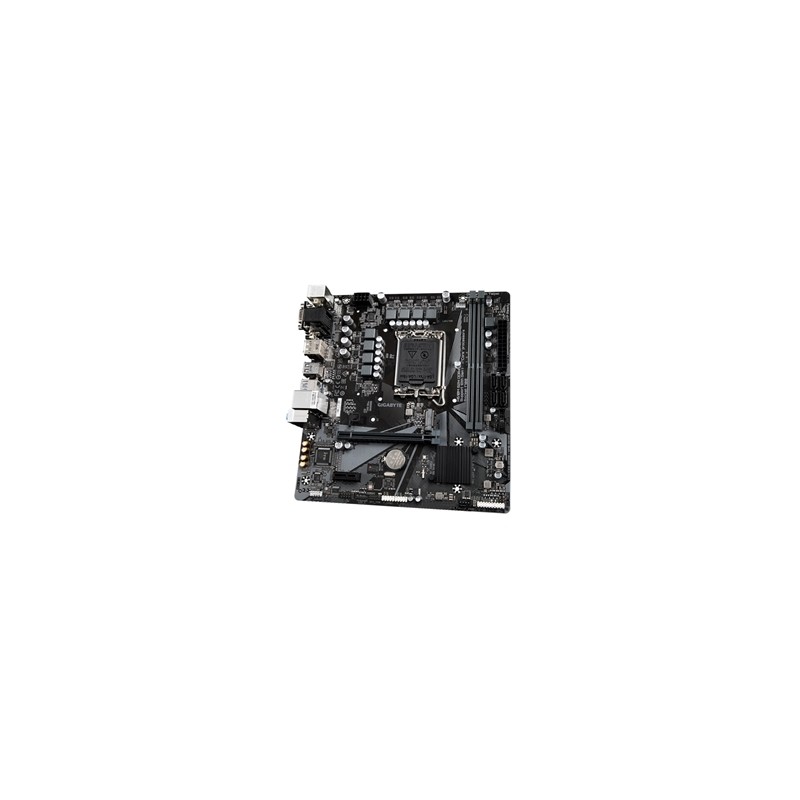

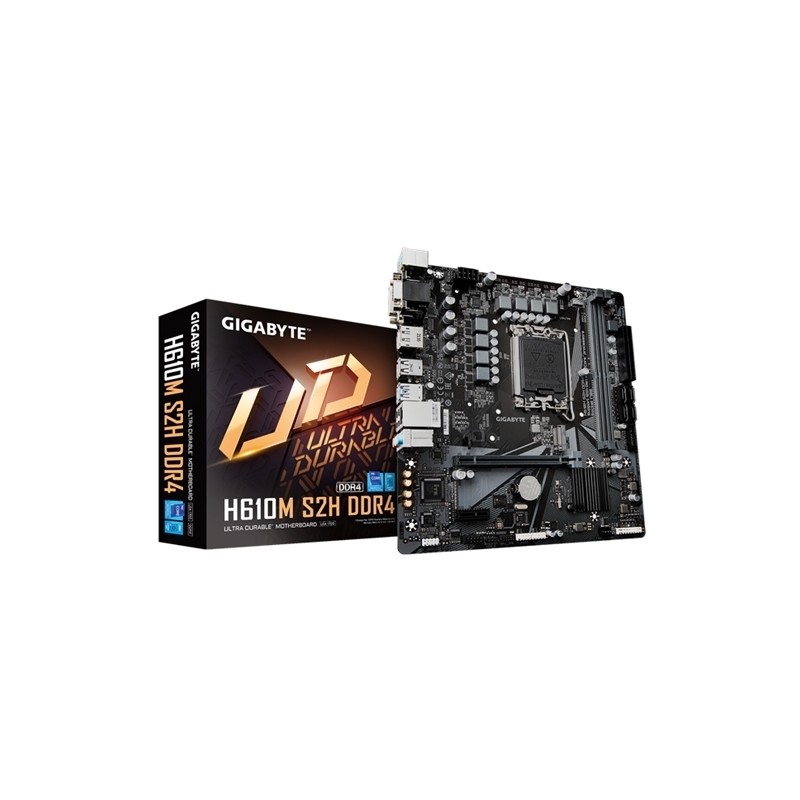

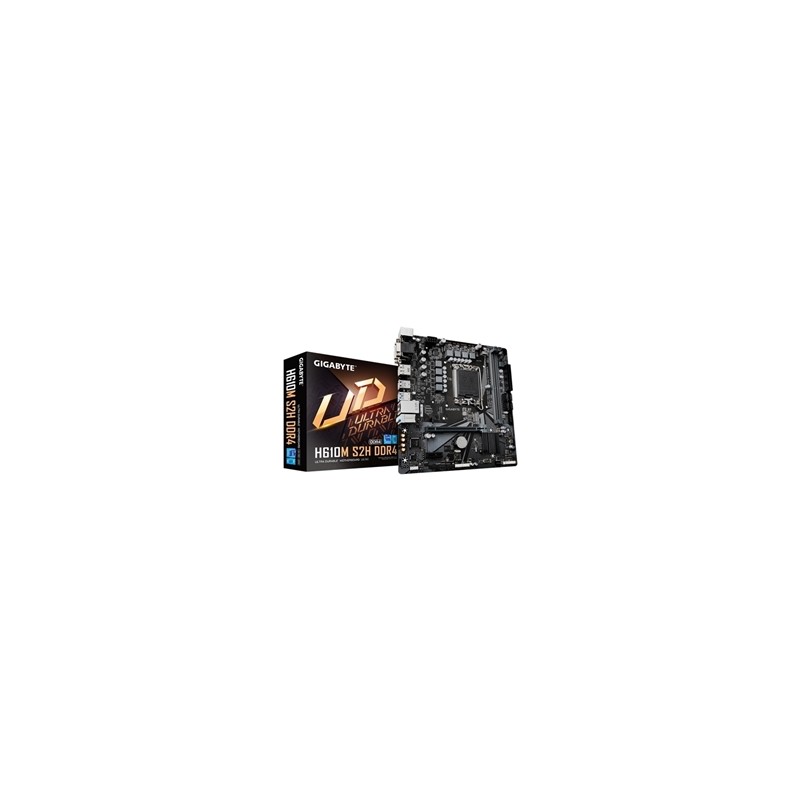

Matična plošča GIGABYTE H610M S2H DDR4, LGA1700, mATX

Osnovna plošča H610M S2H serija visoko zmogljivih računalniških komponent proizvajalca Gigabyte.
Ponaša se s podnožjem LGA 1700, zato je združljiva z zmogljivimi Intel procesorji 12/13 generacije. Podpora za DDR4 sistemski pomnilnik omogoča vgradnjo zmogljivega pomnilnika do skupne kapacitete kar 64 GB.


Podnožje: INTEL LGA 1700 / 12-13 Gen Intel Core i9/i7/i5/i3 / Intel Pentium / Intel Celeron
Format: Micro ATX Form Factor 23cm x 21.5cm
Vezni čip: Intel H610
Zvočna kartica: Realtek audio codec High Definition Audio (2/4/5.1/7.1-channel)
Mrežna kartica: Realtek LAN chip (10/100/1000 Mbit)
Grafična kartica: DA - preko CPU


Pomnilnik
2 x DDR4 DIMM (do 3200/3000/2933/2666/2400/2133MHz) do skupno 64GB kapacitete, dual channel in Extreme Memory Profile (XMP) podpora


Razširitvene reže
1 x PCI Express x16 (4.0/3.0)
1 x PCI Express x1 (3.0)


Notranji priključki
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper


Zunanji priključki
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x DisplayPort
1 x HDMI 2.0 port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks


Dodatno
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Garancija: 3 leta
