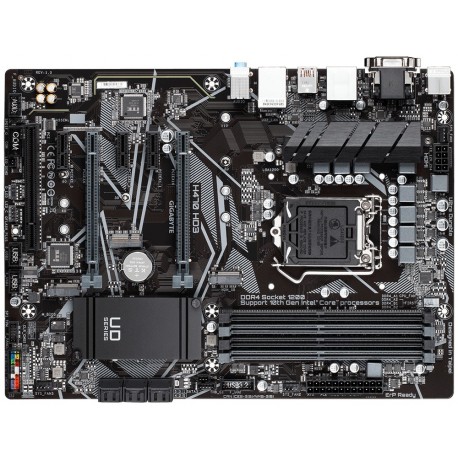

Matična plošča GIGABYTE H470 HD3, DDR4, LGA1200, ATX

PODNOŽJE: INTEL LGA 1200
ZA PROCESORJE: 10th Generation Core i9/i7/i5/i3/Pentium/Celeron
FORMAT: ATX Form Factor 30.5 x 22.5 cm
VEZNI ČIP: Intel H470 Express
POMNILNIK:
4
x DIMM DDR4 (do 2933MHz) do skupno 128GB kapacitete, dual channel in
Extreme Memory Profile (XMP)
podpora
GRAFIKA: DA - preko CPU
RAID: DA (0,1,5,10)
RAZšIRITVENE REŽE:
1
x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0
x16 (x4 mode)
3 x PCIe 3.0
x1
1 x PCI
MREŽNA KARTICA: Intel Gigabit LAN Controller(s)
ZVOČNA KARTICA:
Realtek ALC887 8-Channel High Definition Audio CODEC
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
ZUNANJI PRIKLJUČKI:
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
DODATNO:iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
cFosSpeedSpletna stran proizvajalca:
https://www.gigabyte.com/Motherboard/H470-HD3-rev-10#kf
