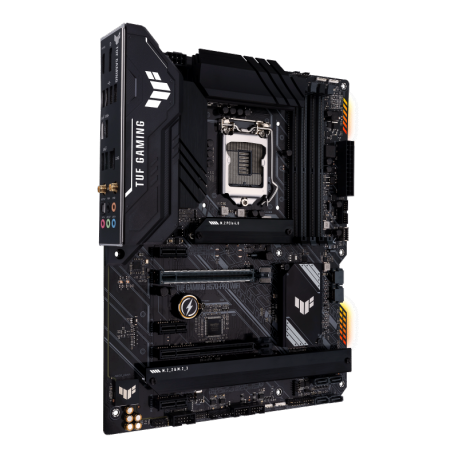

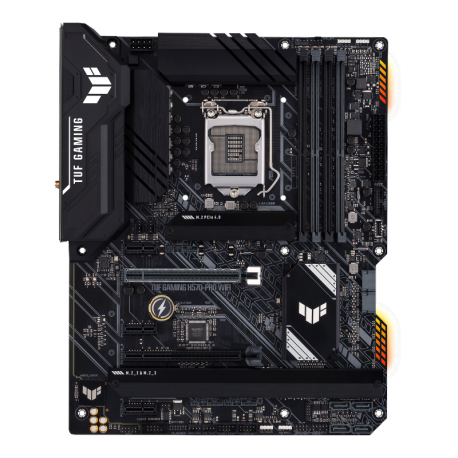

Matična plošča ASUS TUF GAMING H570-PRO, 90MB16L0-M0EAY0

ZA PROCESORJE: Intel Core 11. in 10. generacije, Pentium Gold in Celeron procesorji
PODNOŽJE: Intel LGA1200
ČIPSET: Intel H570
FORMAT: ATX
POMNILNIK: 4 DIMM DDR4 3200 MHz (5000OC), do max 128 GB skupne kapacitete
MREŽNA POVEZAVA: 1 x Realtek 2.5Gb Ethernet
BREZŽIČNA POVEZAVA:
- Intel® Wi-Fi 6
- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5GHz frequency band
- Bluetooth v5.0 or late
ZVOČNA KARTICA: Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
ZUNANJI PRIKLJUČKI:
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 1 x USB 3.2 Gen 1 port (1 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x ASUS Wi-Fi Module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x Optical S/PDIF out port
NOTRANJI PRIKLJUČKI:
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 3 x 4-pin Chassis Fan headers
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 3 x M.2 slots (Key M)
- 6 x SATA 6Gb/s ports
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- 2 x AURA Addressable Gen 2 headers
- 2 x AURA RGB headers
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thunderbolt™ header
