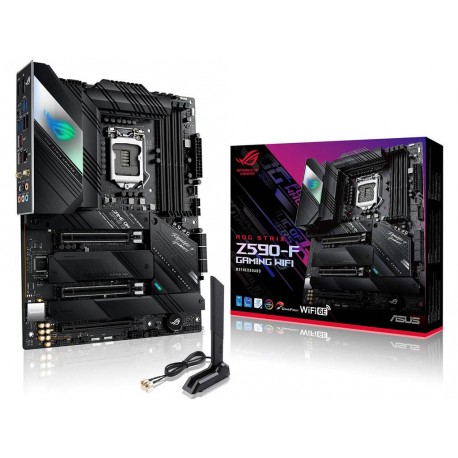

Matična plošča ASUS ROG STRIX Z590-F GAMING WIFI, 90MB1630-M0EAY0

ZA PROCESOR: 11. in 10. generacija Intel Core, Pentium Gold in Celeron
PODNOŽJE: Intel 1200
NABOR ČIPOV: Intel Z590
POMNILNIK: 4 DIMM DDR4 5333 MHz (OC) do 128 GB skupne kapacitete
FORMAT: ATX
BREZŽIČNE POVEZAVE: 2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2
ZVOČNA KARTICA: ALC4080 + Savitech SV3H712 AMP
RAID: Da
NOTRANJI PRIKLJUČKI:
- 1 x Thunderbolt 4 header
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 3 x 4-pin Chassis Fan headers
- 1 x VRM heatsink Fan header
- 1 x W_PUMP+ header
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- 4 x M.2 slots (Key M)
- 6 x SATA 6Gb/s ports
- 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- 3 x AURA Addressable Gen 2 headers
- 1 x AURA RGB header
- 1 x CPU Over Voltage jumper
- 1 x Front Panel Audio header (AAFP)
-1 x SPI TPM header (14-1pin)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thermal Sensor header
- 1 x Thunderbolt header
ZUNANJI PRIKLJUČKI:
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C® )
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x HDMI™ port
- 1 x DisplayPort
- 5 x Gold-plated audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack™ button
- 1 x Clear CMOS button

Spletna stran proizvajalca: https://rog.asus.com/motherboards/rog-strix/rog-strix-z590-f-gaming-wifi-model/spec
