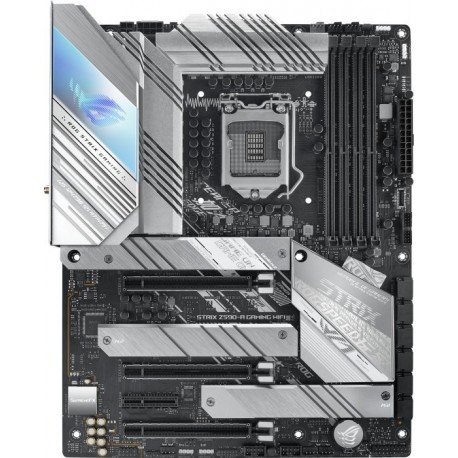

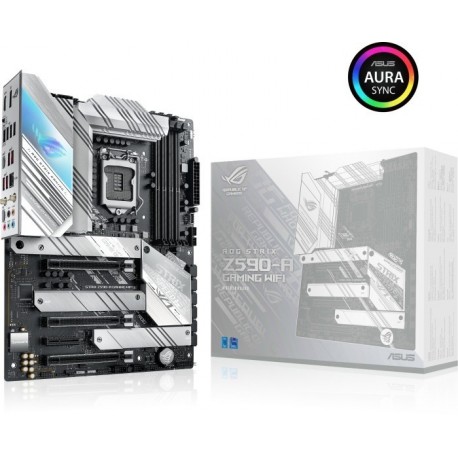

Matična plošča ASUS ROG STRIX Z590-A GAMING, DDR4, LGA1200, ATX

PODNOŽJE: INTEL LGA1200
ZA PROCESORJE:Intel 11th/10th
Generation Core™ i7/i5/i3/Pentium/Celeron
FORMAT: ATX Form Factor 30.5 x 24.4 cm
VEZNI ČIP: Intel
Z590 Express
POMNILNIK:
4
x
DDR4 (5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz)
do skupno 128GB kapacitete, dual channel in
Extreme Memory Profile (XMP)
podpora
GRAFIKA: preko CPU
RAID: DA (0,1,5,10)
RAZšIRITVENE REŽE:
3 x PCIe 4.0/3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4 mode)
MREŽNA KARTICA:
Intel I225-V 2.5Gb Ethernet
LAN chip +
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) +
Bluetooth v5.0
ZVOČNA KARTICA:
ROG SupremeFX
ALC4080
codec, High Definition Audio,
2/4/5.1/7.1-channel
NOTRANJI PRIKLJUČKI:
1 x Thunderbolt 4 header
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
1 x VRM heatsink Fan header
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
1 x USB 3.2 Gen 1 connector (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
3 x AURA Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
1 x S/PDIF out header
ZUNANJI PRIKLJUČKI:
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
5 x USB 2.0 port(s) (4 x Type-A, 1 x Audio USB Type-C)
1 x HDMI port
1 x DisplayPort
1 x ASUS Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack button
DODATNO:Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 RGB header(s)
Software Features
ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Two-Way AI Noise Cancelation
AI Suite 3
- 5-Way Optimization with AI Overclocking
TPU
EPU
Digi+ VRM
Fan Xpert 4
Turbo app
- EZ update
DAEMON Tools
MyAsus
WinRAR
UEFI BIOS
MemTest86
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKeySpletna stran proizvajalca:
https://rog.asus.com/motherboards/rog-strix/rog-strix-z590-a-gaming-wifi-model/
