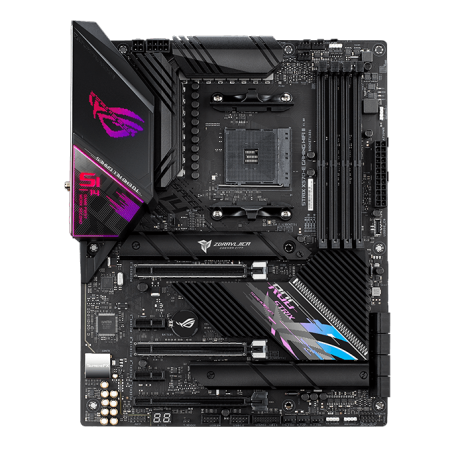

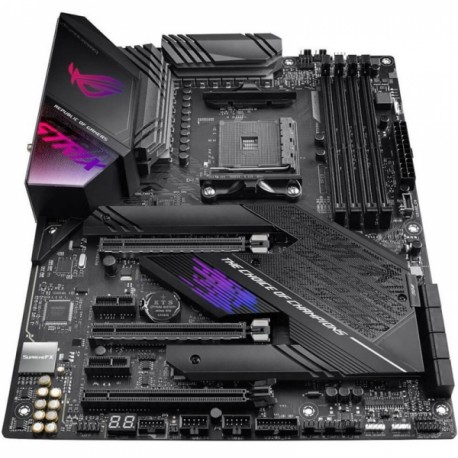

Matična plošča ASUS ROG STRIX X570-E GAMING WIFI II, 90MB19W0-M0EAY0

Vezni nabor: AMD X570
Podnožje: AM4
Podpora za procesorje: Ryzen (podpira Ryzen 2000 Series/ 2000 G-Series/ 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
Pomnilnik: 128 GB DDR4 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5100 MHz (O.C.) NON-ECC, ECC
Avdio SupremeFX HD Audio (8-channel)
Povezave: Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Razširitvena mesta: 1x CPU, 4x DIMM 288-pin, 2x PCIe 4.0 x16, 1x PCIe 4.0 x16, 2x PCIe .0 x1
Vmesniki za shranjevanje: SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 4.0 -connectors: 2 x M.2
Priključki: 1 x LAN (Gigabit Ethernet)
1 x audio line-in
1 x audio line-out
1 x microphone
1 x TOSLINK
7 x USB 3.2 Gen 2
1 x audio line-out (center/subwoofer)
1 x audio line-out (rear)
1 x LAN (2.5Gigabit Ethernet)
1 x USB-C Gen2
1 x DisplayPort
1 x HDMI
Format: ATX
