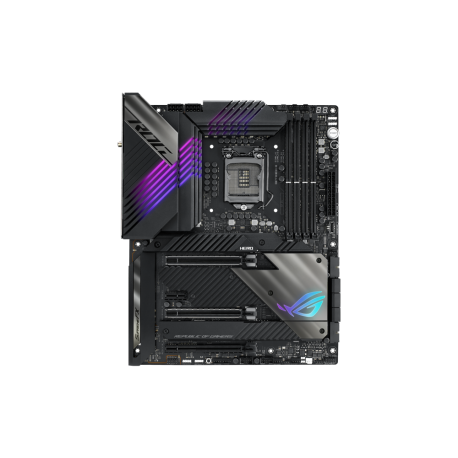

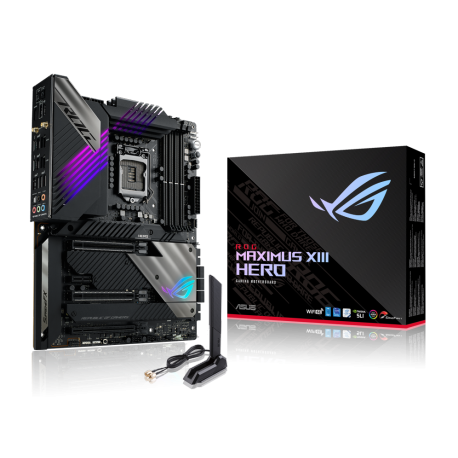

Matična plošča ASUS ROG MAXIMUS XIII HERO, 90MB15X0-M0EAY0

ZA PROCESORJE: Intel 10. in 11. generacije, Pentium Gold in Celeron procesorji
PODNOŽJE: Intel LGA1200
ČIPSET: Intel Z590
FORMAT: ATX
POMNILNIK: 4 DIMM DDR4 3200 MHz (5333OC), do max 128 GB skupne kapacitete
MREŽNA POVEZAVA: 2 x Intel® I225-V 2.5Gb Ethernet, ASUS LANGuard
BREZŽIČNA POVEZAVA: 2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2
ZVOČNA KARTICA: ALC4082
ZUNANJI PRIKLJUČKI:
- 2 x Thunderbolt™ 4 USB Type-C® port(s)
- 6 x USB 3.2 Gen 2 port(s) (6 x Type-A)
- 2 x USB 2.0 port(s) (2 x Type-A)
- 1 x HDMI™ port
- 1 x ASUS Wi-Fi Module
- 2 x Intel® I225-V 2.5Gb Ethernet
- 5 x Gold-plated audio jacks
- 1 x Optical S/PDIF out port
NOTRANJI PRIKLJUČKI:
- 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support
- 1 x 4-pin CPU Fan header(s)
- 1 x 4-pin CPU OPT Fan header(s)
- 1 x 4-pin AIO Pump header(s)
- 3 x 4-pin Chassis Fan header(s)
- 1 x 4-pin H_AMP Fan header(s)
- 1 x W_PUMP+ header(s)
- 1 x 2-pin Water In header
- 1 x 2-pin Water Out header
- 1 x 3-pin Water Flow header
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V Power connector
- 4 x M.2 slots (Key M)
- 6 x SATA 6Gb/s ports
- 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®)
- 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
- 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
- 3 x AURA Addressable Gen 2 header(s)
- 1 x AURA RGB header(s)
- 1 x FlexKey button
- 1 x Front Panel Audio header (AAFP)
- 1 x ReTry button
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x Start button
- 1 x 10-1 pin System Panel header
- 1 x Thermal Sensor header
