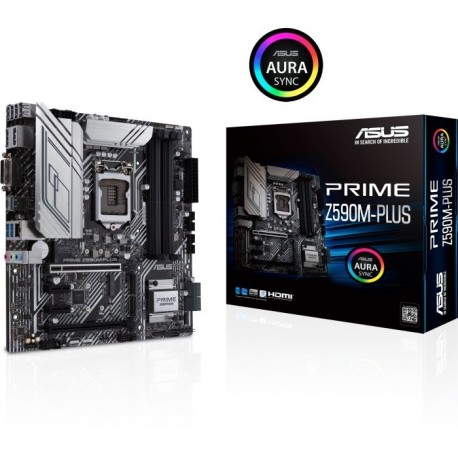

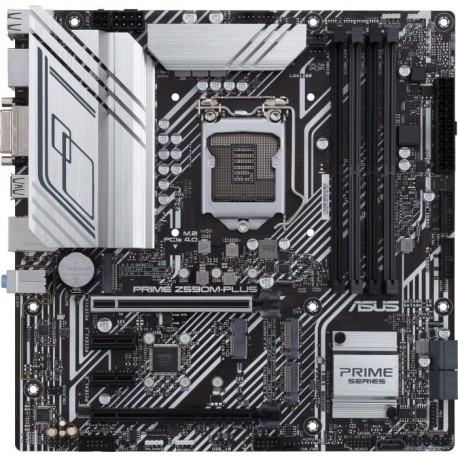

Matična plošča ASUS PRIME Z590M-PLUS, DDR4, LGA1200, mATX

PODNOŽJE: INTEL LGA1200
ZA PROCESORJE:Intel 11th/10th
Generation Core™ i7/i5/i3/Pentium/Celeron
FORMAT: mATX Form Factor 24.4 x 24.4 cm
VEZNI ČIP: Intel
Z590 Express
POMNILNIK:
4
x
DDR4 (5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz)
do skupno 128GB kapacitete, dual channel in
Extreme Memory Profile (XMP)
podpora
GRAFIKA: preko CPU
RAID: DA (0,1,5,10)
RAZšIRITVENE REŽE:
1
x PCIe 4.0/3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4 mode)2 x PCIe 3.0 x1
MREŽNA KARTICA: Intel
I219-V
GbE
LAN chip (100/1000 Mbit)
ZVOČNA KARTICA:
Realtek
ALC897 codec, High Definition Audio,
2/4/5.1/7.1-channel
NOTRANJI PRIKLJUČKI:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
5 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header
ZUNANJI PRIKLJUČKI:
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x DVI-D port
1 x HDMITM port
1 x Intel I219V 1Gb Ethernet
3 x Audio jacks
DODATNO:ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- Procool
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
- EZ update
ASUS CPU-Z
AI Charger
Norton Anti-virus software (Free Trial version)
DAEMON Tools
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ ModeSpletna stran proizvajalca:
https://www.asus.com/Motherboards-Components/Motherboards/All-series/PRIME-Z590M-PLUS/
