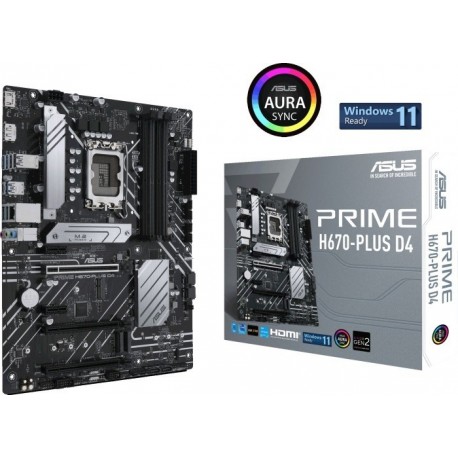

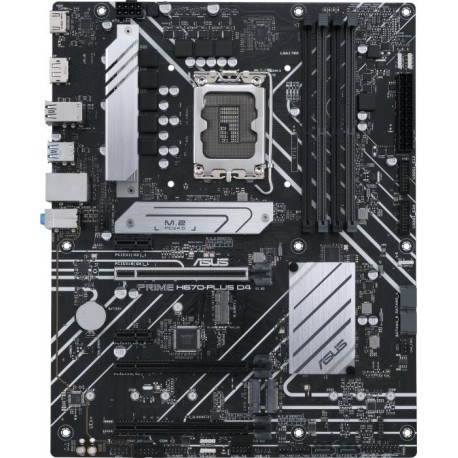

PODNOŽJE: INTEL LGA 1700
ZA PROCESORJE: 12th Generation Core i7/i5/i3/Pentium/Celeron
FORMAT: ATX Form Factor 24.4 x 30.5 cm
VEZNI ČIP: Intel H670
POMNILNIK:
4 x DIMM DDR4 (do
5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133MHz) do skupno 128GB kapacitete, dual channel podpora,
Extreme Memory Profile XMP podporaGRAFIKA: DA - preko CPU
RAID: DA (0,1,5,10)
RAZšIRITVENE REŽE:
1
x PCIe 4.0/3.0 x16 (Intel 12th Gen processors support PCIe 4.0)
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
MREŽNA KARTICA:
Realtek 2.5Gb Ethernet z
ASUS LANGuard
ZVOČNA KARTICA:
7.1-Channel High Definition Audio CODECNOTRANJI PRIKLJUČKI:
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
1 x USB 2.0 header supports additional 1 USB 2.0 port
Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header
ZUNANJI PRIKLJUČKI:
1 x USB 3.2 Gen 2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
DODATNO:ASUS 5X PROTECTION III
- DIGI+ VRM
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ ModeSpletna stran proizvajalca:
https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-H670-PLUS-D4/
