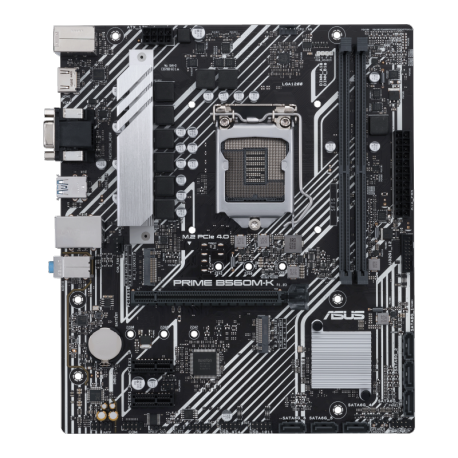

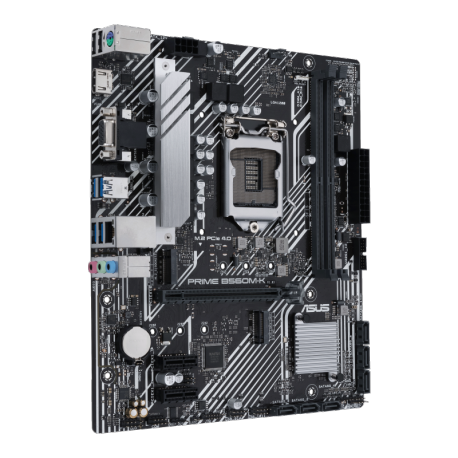

Matična plošča ASUS PRIME B560M-K, LGA1200, 90MB16S0-M0EAY0

ZA PROCESORJE: Intel Core 11. in 10. generacije, Pentium Gold in Celeron procesorji
PODNOŽJE: Intel LGA1200
ČIPSET: Intel B560
FORMAT: micro ATX
POMNILNIK: 2 DIMM DDR4 2933 MHz (5000OC), do max 64 GB skupne kapacitete
MREŽNA POVEZAVA: 1 x Intel® I219-V 1Gb Ethernet, ASUS LANGuard
ZVOČNA KARTICA: Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
ZUNANJI PRIKLJUČKI:
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x D-Sub port
- 1 x HDMI™ port
- 1 x Intel® I219-V 1Gb Ethernet
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
NOTRANJI PRIKLJUČKI:
- 1 x 4-pin CPU Fan header
- 1 x 4-pin Chassis Fan header
- 1 x 24-pin Main Power connector
- 1 x 8-pin+12V Power connector
- 2 x M.2 slots (Key M)
- 6 x SATA 6Gb/s ports
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- 1 x RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1- x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
