Pomnilnik 4x DDR5, do 9600MHz+(OC), do 256GB, XMP
Razširitvena mesta CPU 1x PCIe 5.0 x16 (PCIE1), podpira x16 način
Razširitvena mesta Chipset 1x PCIe 4.0 x16 Slot (PCIE2), podpira x4 način
1x M.2 Socket (Key E), podpira 2230 WiFi/BT PCIe WiFi modul
Shranjevanje CPU 1x Blazing M.2 2280 PCIe Gen5x4 (128 Gb/s)
1x Hyper M.2 2260/2280 PCIe Gen4x4 (64 Gb/s)
Shranjevanje Chipset 1x Hyper M.2 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s)
1x Hyper M.2 (M2_4) 2260/2280 PCIe Gen4x4 (64 Gb/s)
1x Hyper M.2 2260/2280 PCIe Gen4x4 (64 Gb/s)
1x Hyper M.2 2260/2280 PCIe Gen4x4 (64 Gb/s)
4x SATA3 6.0 Gb/s
Če je PCIE2 zaseden, M2_4 ne deluje
Podpira RAID 0, RAID 1, RAID 5, RAID 10 (za SATA in M.2 NVMe)
Mrežna kartica 1x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126)
1x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
Zvočna kartica 5.1 CH HD Audio (Realtek ALC4082), ESS SABRE9219 DAC (130dB SNR), Nahimic Audio, podpora za slušalke do 600 Ohm
Notranji konektorji 3x Thermistor kabel header, 1x SPI TPM, 1x RGB LED Header, 3x Addressable LED, 2x CPU ventilator (4-pin), 4x ventilator (4-pin), 1x AIO črpalka ventilator (4-pin), 1x črpalka (4-pin), 1x 24 pin ATX Power, 2x 8 pin 12V Power, 1x Front Panel Audio Connector, 2x USB 2.0 Headers (podpirajo 4 USB 2.0), 2x USB 3.2 Gen1 Headers (podpirajo 4 USB 3.2 Gen1), 1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s), 1x Dr. Debug z LED, 1x Power gumb z LED, 1x Reset gumb z LED
Zunanji konektorji

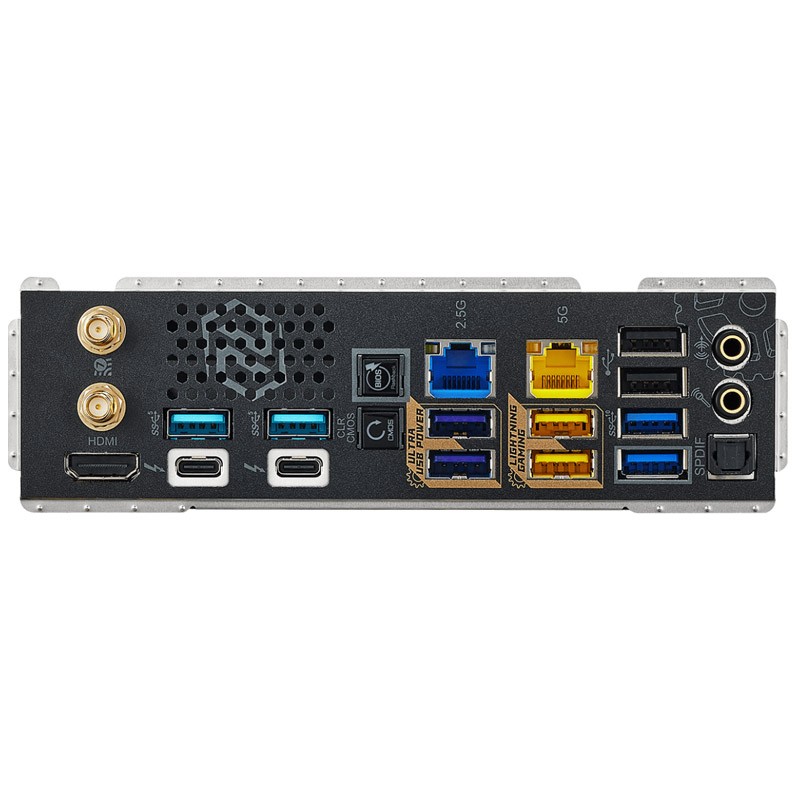

2x Antena, 1x HDMI, 1x Optical SPDIF Out, 2x Thunderbolt 4 Type-C (40 Gb/s USB4 in Thunderbolt), 4x USB 3.2 Gen2 Type-A (10 Gb/s), 4x USB 3.2 Gen1, 2x USB 2.0, 2x RJ-45 LAN, 1x Clear CMOS gumb, 1x BIOS Flashback gumb, 1x Line Out Jack (Gold Audio Jack), 1x Microphone Input Jack (Gold Audio Jack)
MB-363440
