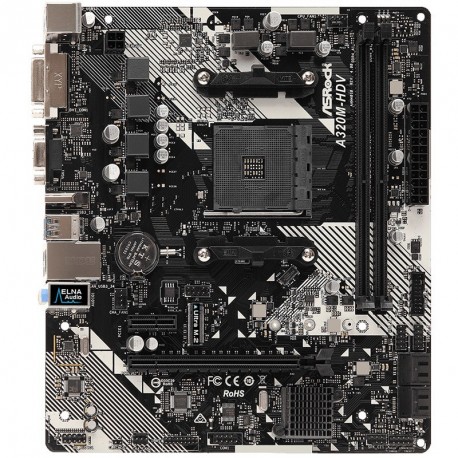

Matična plošča AsRock A320M-HDV R4.0 AM4

ASROCK A320M-HDV R4.0 matična plošča podpira procesorje z AM4 podnožjem in ima na voljo 2 reži za DDR4 pomnilnike. Nudi vam HDMI, DVI in VGA priključke in kar 6 USB 3.2 gen 1 priključkov (2 spredaj in 4 zadaj). Podpira priključitev do 3 monitorje hkrati.

Dodatno:: ASRock Super Alloy
- High Density Glass Fabric PCB
- Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- DRAM Voltage multi-adjustment
Software
- ASRock APP Charger
- ASRock XFast LAN

UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer

EAN koda: 4717677337648
energijski_razred: No
format_filter_maticne: Micro ATX
Garancija: 24 mesecev
Integrirana grafika: integrirana AMD Radeon Vega grafika (Ryzen)
integrirana AMD Radeon R-serija grafika (A-serija APU)
Mrežna kartica: PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H, podpora za Wake-On-LAN
Notranji konektorji:: 1x COM Port
1x TPM
1x Chassis Intrusion and Speaker Header
1x CPU Fan (4-pin)*
2x Chassis Fan (1 x 4-pin, 1 x 3-pin)**
1x 24 pin ATX Power
1x 4 pin 12V Power
1x Front Panel Audio
2x USB 2.0 (podpira 4 USB 2.0 priključke)
1x USB 3.2 Gen1 (podpira 2 USB 3.2 Gen1 priključka)
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power
**The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power

Podnožje:: AM4 (3. gen)
Pomnilnik:: 2x DDR4 DIMM
do največ 32 GB
Ryzen (Pinnacle Ridge, Raven Ridge in Summit Ridge) do 3200+(OC)*
AMD 7. Gen A-serija 2400/2133 non-ECC*
Proizvajalec: ASROCK
Razširitvena mesta:: AMD Ryzen (Summit Ridge, Pinnacle Ridge): 1x PCI Express 3.0 x16 (PCIE2: x16 mode)*
AMD 7th A-Series APU: 1x PCI Express 3.0 x16 (PCIE2: x8 mode)*
AMD Ryzen (Raven Ridge): 1x PCI Express 3.0 x16 (PCIE2: x8 mode)*
AMD Athlon: 1x PCI Express 3.0 x16 (PCIE2: x4 mode)*
1x PCI Express 2.0 x1
*Supports NVMe SSD as boot disks

SATA/IDE: 4x SATA3 6.0 Gb/s, RAID 0, RAID 1, RAID 10)
1x Ultra M.2, M Key 2242/2260/2280 M.2 SATA3 6.0 Gb/s modul in M.2 PCI Express modul do Gen3 x4 (32 Gb/s) ali Gen3 x2 (16 Gb/s)
stevilo_usb_prikljuckov: notranji priključki:
2x USB 2.0 (podpira 4 USB 2.0 priključke)
1x USB 3.2 Gen1 (podpira 2 USB 3.2 Gen1 priključka)
zunanji priključki:
2x USB 2.0
4x USB 3.2 Gen1

Število M.2 rež:: 1
Vezni nabor:: AMD Promontory A320
Zunanji konektorji:: 1x PS/2 miška,
tipkovnica
1x VGA
1x DVI
1x HDMI
2x USB 2.0 priključek
4x USB 3.2 Gen1 priključek
1x RJ-45 LAN priključek z LED
HD avdio priključek: Line in / prednji zvočnik / mikrofon

zvocna_kartica: 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
