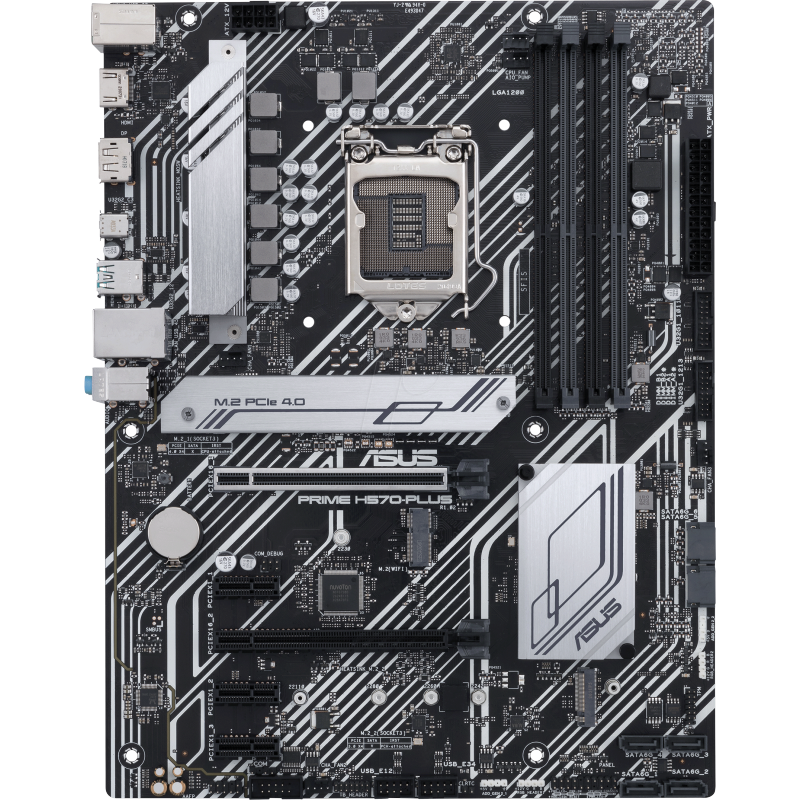

Matična plošča ASUS PRIME H570-PLUS, 90MB16M0-M0EAY0

PODNOŽJE: INTEL LGA1200
ZA PROCESORJE:Intel 11th/10th
Generation Core™ i7/i5/i3/Pentium/Celeron
FORMAT: ATX Form Factor 30.5 x 23.4 cm
VEZNI ČIP: Intel
H570 Express
POMNILNIK:
4
x
DDR4 (4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz)
do skupno 128GB kapacitete, dual channel in
Extreme Memory Profile (XMP)
podpora
GRAFIKA: preko CPU
RAID: DA (0,1,5,10)
RAZšIRITVENE REŽE:
1 x PCIe 4.0/3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x16 (x1 mode)
MREŽNA KARTICA:
Intel I219-V 2.5Gb Ethernet
LAN chip
ZVOČNA KARTICA:
Realtek
ALC897
codec, High Definition Audio,
2/4/5.1/7.1-channel
NOTRANJI PRIKLJUČKI:
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF out header
1 x 20-3pin System Panel header with Chassis intrude function
1 x 14-1 pin SPI TPM header
1X M.2 slot (Key E)
1 x Thunderbolt 4 header
ZUNANJI PRIKLJUČKI:
1 x DP port
1 x HDMI port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
1 x Intel® I219-V port
4 x USB 2.0 ports (4 x Type-A)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1x USB 3.2 Gen 2 port (1 x USB Type-C®)
DODATNO:ASUS 5X PROTECTION III- ASUS DIGI+VRM- ASUS LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot Core+- ASUS Stainless-Steel Back I/OASUS Q-Design:- ASUS Q-DIMM- ASUS Q-SlotASUS Thermal Solution- Flexible M.2 heatsink- VRM heatsink designASUS EZ DIY- Box HeadersAURA SYNC- AURA RGB headers- Addressable Gen 2 RGB headers
ASUS Exclusive Software:Armoury CrateAI Suite 3-Performance And Power Saving UtilityTurboV EVODigi+ VRMEPUFan Xpert 2+- EZ updateAI ChargerASUS CPU-ZDAEMON ToolsNorton Anti-virus software(Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeSpletna stran proizvajalca:
https://www.asus.com/Motherboards-Components/Motherboards/All-series/PRIME-H570-PLUS/
