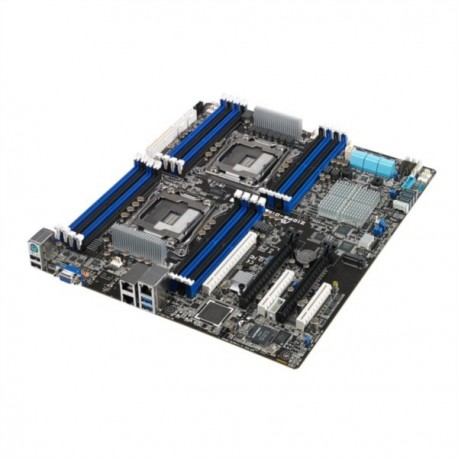

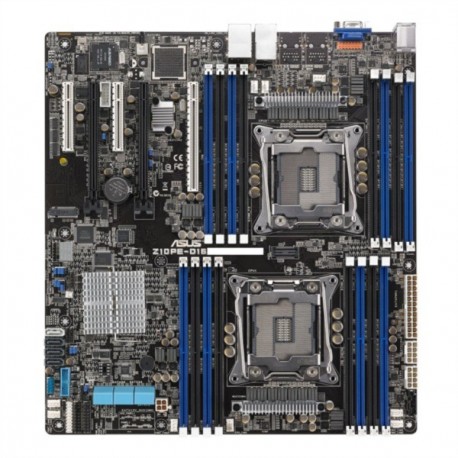

Matična plošča ASUS Z10PE-D16, DualCPU, DDR4, LGA2011-3, EATX

PODNOŽJE: 2x INTEL 2011-3 Square 80x80mm
ZA PROCESORJE: Intel XEON E5-2600 v3/v4
FORMAT: EEB Form Factor 30.5 cm x 33.0 cm
VEZNI ČIP: Intel C612 PCH
POMNILNIK:- 16 x DIMM DDR4 (do 2400 MHz) do skupno 1024GB kapacitete
Podpora za:32GB, 16GB, 8GB, 4GB RDIMM64GB, 32GB LRDIMM
GRAFIKA:Aspeed AST2400 with 32MB VRAM
RAID: DA (0,1,5,10)
RAZŠIRITVENE REŽE:Slot Location 1 : PCI-E x8 (Gen3 X4 Link), MIO supported
Slot Location 2 : PCI-E x16 (Gen3 X16 Link)
Slot Location 3 : PCI-E x8 (Gen3 X8 Link)
Slot Location 4 : PCI-E x16 (Gen3 X16 Link)
Slot Location 6 : PCI-E x16 (Gen3 X16 Link)
MREŽNA KARTICA:1 x Dual Port Intel Ethernet Controller i350-AM2 + 1 x Mgmt LAN
ZVOČNA KARTICA: /
NOTRANJI PRIKLJUČKI:1 x TPM header1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector)1 x USB 3.0 pin header , Up to 2 Devices1 x USB 2.0 pin header
9 x Fan Header , 4pin1 x SMBus
1 x Chassis Intruder2 x Front LAN LED1 x Serial Port Header1 x M.2 Connector , NGFF Type : 2242, Capacity : 16~128GB
ZUNANJI PRIKLJUČKI:
2 x USB 3.1 Gen 12 x USB 2.01 x VGA Port2 x GbE LAN1 x Mgmt LAN1 x PS/2 KB/Mouse
DODATNO:Rack Ready (Rack and Pedestal dual use)ASWM EnterpriseASMB8-iKVM for KVM-over-InternetCPU TemperatureFan RPM
Spletna stran proizvajalca:https://www.asus.com/Commercial-Servers-Workstations/Z10PED16/overview/
